Mopa Fiber Laser Marking Machine For Color Marking On Stainless steel , Anodized aluminium With CE FDA
Application :

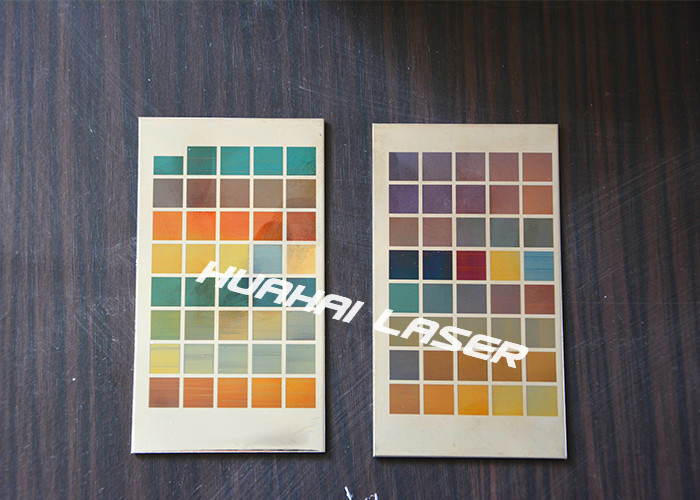

MOPA machine is for marking stainless steel and anodized aluminium black and color .
MOPA machine aslo have good performance on plastic .
Its Frquency is 1-1000KHZ ,compared with 20-80KHZ of normal laser source .
Machine advantages:
1) Featured with the integrated design, the fiber laser marking system is of compact size, low consumption, long life-span, high efficiency, free from maintenance, convenient to be installed and taken away.
2) The whole machine is of easy operation, and one key to control the power on and power off.
3) With strong extensive ability, the equipment can be available in all kinds of working environment, especially suitable for the unique processing and operation, convenient to be matched with other automatic equipments.
4) With superior laser beam, and precise light spot, it is no need of consumable items.
5) he scanning galvanometer is imported with original packaging, and with compact size and fast speed, it is of precise location, its software operation is simple and function is strong.
Application Industry
MOPA machine is fir both metal materials and some non-metallic materials, mainly marked in areas for smoothness, finesse demanding, such as electronic products, metal ware, watches, jewelry , IC, plastic buttons and other graphic surface.
1. Electrical Engineering and Electrical part and component
2. Mobile ( cover, battery, keyboard, I Phone case )
3. Jewellery ( ring, pedeant, bracelet ), eyeglass, clocks and craft
4. Medicine package and medical instrument
5. Car motor car spare part
6. Instrument and meters and cutting tool
7. Plastic case and Building materials, PVC pipe
8. Military product and aviation and aerospace
9. Hardware fitting and accessory
10. Sanitary appliance
11. Food and beverage
12. Solar PV industry: Silicon wafer
13. Other rubber, epoxy resin, ABS, Printing ink, Coating film
Parameter:
| Type | YLP-HB-M |
| Power | 20W/30W/60W |
| Laser Brand | JPT MOPA |
| Frequency | 1-1000Khz |
| Marking Area | 110mm*110mm/175*175mm |
| Marking Speed | 7000mm/s |
| Minimum Line Width | 0.012mm |
| Minimum Character | 0.15mm |
| Repeated Precision | ±0.003mm |
| Life-span of Fiber Laser Module | 100,000hours |
| Beam Quality | M2 <1.5 |
| Focus Spot Diameter | <0.01mm |
| Output Power of Laser | 10%~100% continuously to be adjusted |
| System Operation Environment | Windows XP / W7--32/64bits / W8--32/64bits |
| Cooling Mode | Air cooling |
| Temperature of Operation Environment | 15℃~35℃ |
| Power Input | 220V / 50HZ / single phase or 110V / 60HZ / single phase |
| Power Requirement | <400W |
| Communication Interface | USB |
| Package Dimension | 940*800*1040mm |
| Gross weight | 135KG |
| Optional (Not free of charge) | Rotary Device, Moving Table, other customized Automation |

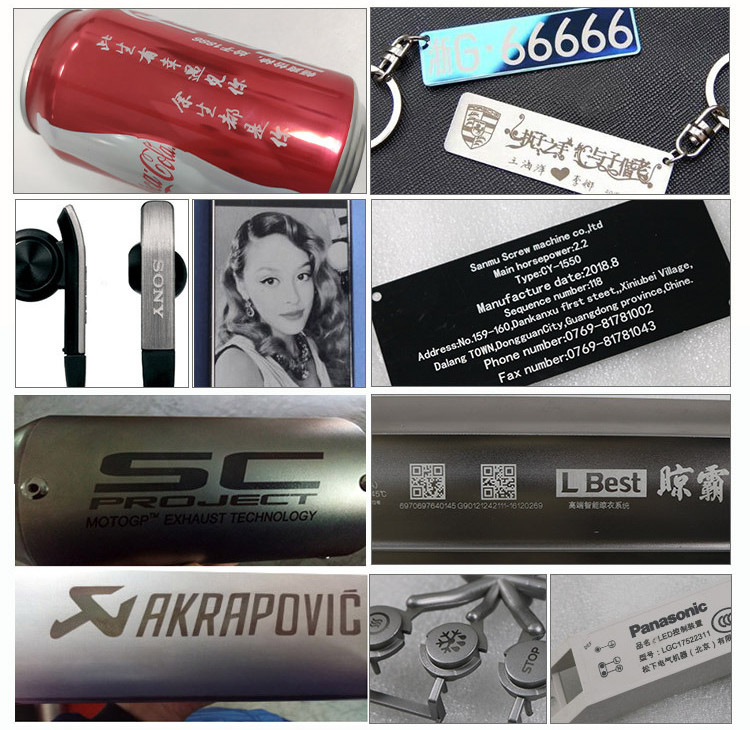

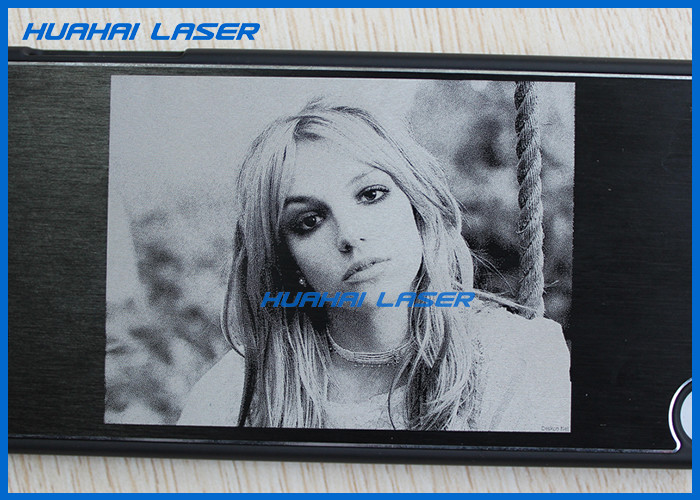

Samples :
