355nm UV laser Marking Machine For Marking On Plastic, Ceramic, Metal, ABS
(Model name :HW-03P, 05P, 10P )
Applications of UV laser marking machine
Cosmetics, pharmaceuticals, food and other polymer bottles’ surface. Marking effect is fine, clear and solid, which is better than the injekt printing and no pullution produced.
Also used in marking and dicing flexible PCB board, drilling tiny hole or blind-hole on silicon wafers, two-dimensional coding on LCD, glass container surface, metal surface coating, plastic keys, electronic components, gifts, communication equipment, construction materials
Advantages of UV laser marking machine
Focused UV light spot size is small , heat-affected area during processing is mimimum,So it is used in ultra fine and special material’s marking.
Since UV laser did not produce any thermal effects and burning issues, the result of the marking is precise , smooth and steep.
A lot of material will absorb UV light at 355nm except Copper, so UV laser are suitable for processing more types of material
| Laser Source | UV Laser |
| Output Power | 3W, 5W,10W |
| Wavelength | 355nm |
| Beam Quality | <2 |
| Repeat Frequency | 10khz--- 100khz |
| Pulse Energy | 2mJ |
| Beam Divergence | -0.3 to +0.3mrad |
| Laser Class | IV |
| Resolution | 18μ |
| Repeatablility | 50μ |
| Marking Scope | 50*50mm 100x100mm |
| Linear Speed | 800 character/ s |
| Marking Linear Speed | ≤12,000mm/s |
| Marking Depth | Max. 1.0- 1.5mm (hard steel) |
| Min. Line Width | 0.012mm |
| Min. Character Size | 0.15mm |
| Repeat Accuracy | ±0.003mm |
| Input Power | 0.5kw |
| Electrical Source | 220V / Single-Phase Circuit / 50/60Hz /4A |

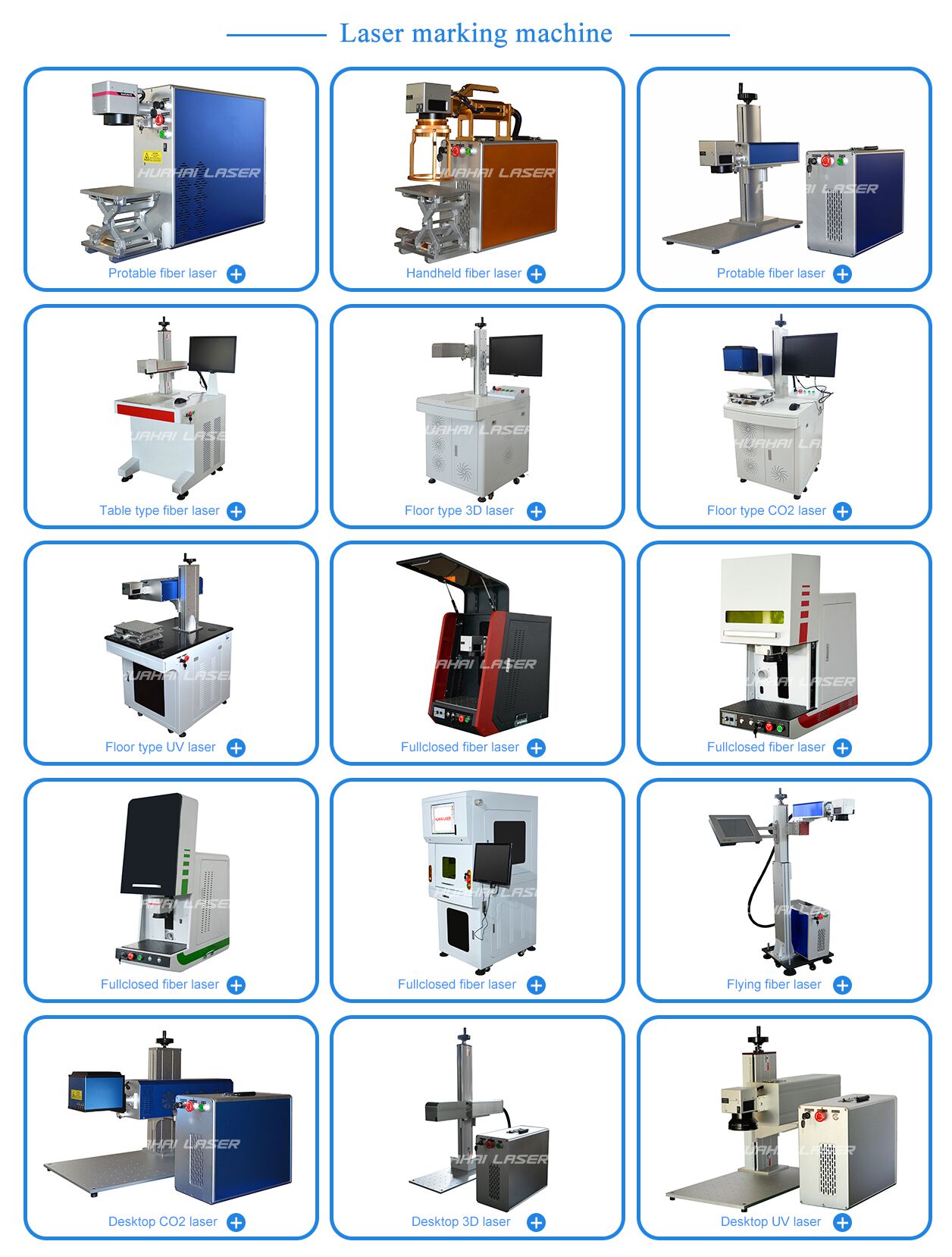

Other Relative Marking Machine
